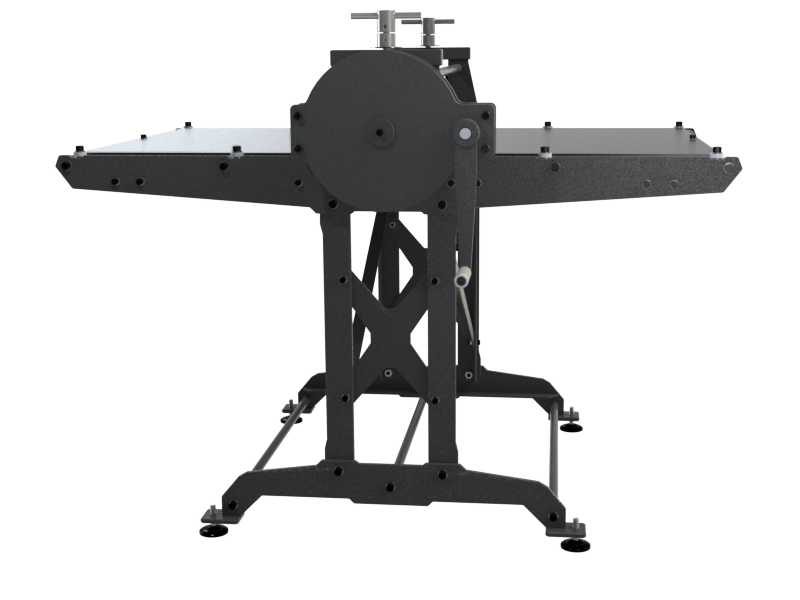

LF SERIES ETCHING PRESS
The best beginner’s choice
These presses are equipped with solid steel rollers, adequate for intaglio printing.
Rollers are supported by oversized, maintenance-free bushings.
The large ratio gearbox provides easy and smooth printing. The gearbox is mounted on the upper roller.
The bed plate is made of 6mm high strength steel.
It is supported and guided by roller bearings and has elastic stops at the ends.
Press is supported by 4 swivel, adjustable height feet, so it can be placed on uneven ground.
Pressure gauges, with 0.1mm accuracy, provide ease of height adjustment when using different materials.
Maximum opening: 4cm.
| LF50 | LF70 | |
|---|---|---|
| Upper Roller Diameter cm (inch) | 9.8 (3.9) | 9.8 (3.9) |
| Lower Roller Diameter cm (inch) | 7.8 (3.1) | 7.8 (3.1) |
| Reduction | 1/5 | 1/7 |
| Bed Plate Thickness mm (inch) | 6 (0.23) | 6 (0.23) |
| Bed Plate Width cm (inch) | 52 (20.5) | 72 (28.3) |
| Bed Plate Travel cm (inch) | 82 (32.3) | 112 (44.1) |
| Max Opening cm (inch) | 4 (1.6) | 4 (1.6) |
| Weight approx. kgr (lbs) | 165 (364) | 210 (463) |
Refer to Downloads for Price List and Technical Information.
