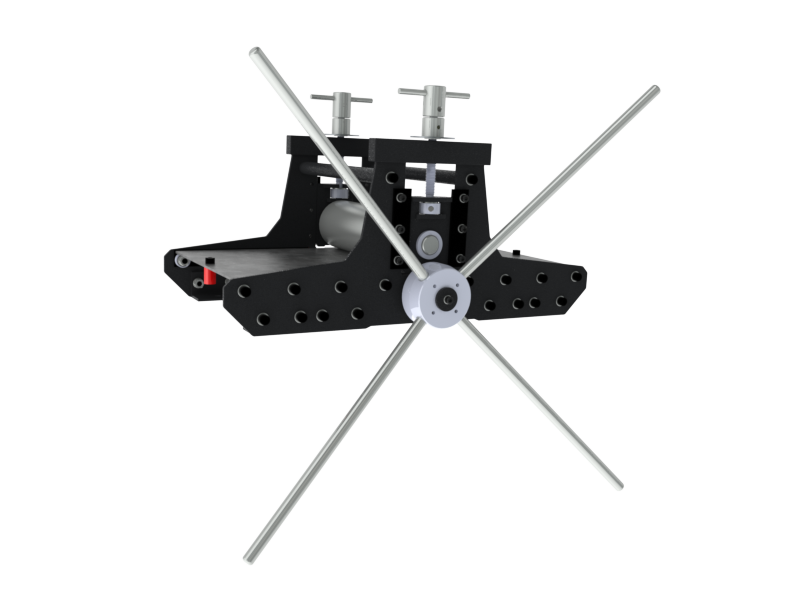

Mini SERIES ETCHING PRESS
Small but powerful
These presses are equipped with 7,8cm upper rollers, adequate for intaglio printing.
Rollers are supported by oversized, maintenance-free bushings.
The wheel is mounted on the lower roller, while it has 4 spokes, 40cm long, to ensure easy and smooth printing.
The bed plate is made of 3cm galvanized steel.
It is supported by roller bearings and guided by wear resistant plastic strips, while it has elastic stops at the ends.
Press has 4 mounting holes, so it can be fixed on a bench or table.
Pressure gauges, with 0.1mm accuracy, provide ease of height adjustment when using different materials.
Maximum opening: 4cm.
| mini25 | mini35 | |
|---|---|---|
| Upper Roller Diameter cm (inch) | 7.8 (3.1) | 7.8 (3.1) |
| Lower Roller Diameter cm (inch) | 4.8 (1.9) | 4.8 (1.9) |
| Reduction | - | 1/2 |
| Bed Plate Thickness mm (inch) | 3 (0.12) | 3 (0.12) |
| Bed Plate Width cm (inch) | 27,5 (10.8) | 38 (15) |
| Bed Plate Travel cm (inch) | 45 (17.7) | 61 (24) |
| Max Opening cm (inch) | 4 (1.6) | 4 (1.6) |
| Weight approx. kgr (lbs) | 32 (71) | 45 (100) |
Refer to Downloads for Price List and Technical Information.
